New section on file name encodings.

2004-06-15  Federico Mena Quintero  <federico@ximian.com>

	* glib/tmpl/conversions.sgml: New section on file name encodings.

	* glib/file-name-encodings.sxd: New diagram of how file name
	encodings work.

	* glib/file-name-encodings.png: Same as above, for inclusion in
	the generated docs.

	* glib/Makefile.am (HTML_IMAGES): Add file-name-encodings.png.
	(EXTRA_DIST): Add the new images.

	* glib/running.sgml: Add ids to the corresponding paragraphs that
	describe G_FILENAME_ENCODING and G_BROKEN_FILENAMES, to be able to
	reference them from elsewhere.

docs/reference/ChangeLog

@@ -1,3 +1,20 @@
+2004-06-15  Federico Mena Quintero  <federico@ximian.com>
+
+	* glib/tmpl/conversions.sgml: New section on file name encodings.
+
+	* glib/file-name-encodings.sxd: New diagram of how file name
+	encodings work.
+
+	* glib/file-name-encodings.png: Same as above, for inclusion in
+	the generated docs.
+
+	* glib/Makefile.am (HTML_IMAGES): Add file-name-encodings.png.
+	(EXTRA_DIST): Add the new images.
+
+	* glib/running.sgml: Add ids to the corresponding paragraphs that
+	describe G_FILENAME_ENCODING and G_BROKEN_FILENAMES, to be able to
+	reference them from elsewhere.
+
 Thu Jun 10 21:29:55 2004  Matthias Clasen  <maclas@gmx.de>

 	* glib/tmpl/modules.sgml: Add an example for GModule

docs/reference/glib/Makefile.am

@@ -39,6 +39,7 @@ MKDB_OPTIONS=--sgml-mode --output-format=xml --ignore-files=trio

 # Images to copy into HTML directory
 HTML_IMAGES =  				\
+	file-name-encodings.png		\

 # Extra SGML files that are included by $(DOC_MAIN_SGML_FILE)
@@ -60,6 +61,8 @@ include $(top_srcdir)/gtk-doc.make

 # Other files to distribute
 EXTRA_DIST +=				\
+	file-name-encodings.png		\
+	file-name-encodings.sxd		\
 	mainloop-states.fig		\
 	mainloop-states.png		\
 	mainloop-states.eps		\

docs/reference/glib/running.sgml

@@ -23,7 +23,7 @@ GLib inspects a few of environment variables in addition to standard
 variables like <envar>LANG</envar>, <envar>PATH</envar> or <envar>HOME</envar>.
 </para>

-<formalpara>
+<formalpara id="G_FILENAME_ENCODING">
   <title><envar>G_FILENAME_ENCODING</envar></title>

   <para>
@@ -34,7 +34,7 @@ variables like <envar>LANG</envar>, <envar>PATH</envar> or <envar>HOME</envar>.
   </para>
 </formalpara>

-<formalpara>
+<formalpara id="G_BROKEN_FILENAMES">
   <title><envar>G_BROKEN_FILENAMES</envar></title>

   <para>

docs/reference/glib/tmpl/conversions.sgml

@@ -9,6 +9,153 @@ convert strings between different character sets using <function>iconv()</functi

 </para>

+    <refsect2 id="file-name-encodings">
+      <title>File Name Encodings</title>
+
+      <para>
+	Historically, Unix has not had a defined encoding for file
+	names:  a file name is valid as long as it does not have path
+	separators in it ("/").  However, displaying file names may
+	require conversion:  from the character set in which they were
+	created, to the character set in which the application
+	operates.  Consider the Spanish file name
+	"<filename>Presentaci&oacute;n.sxi</filename>".  If the
+	application which created it uses ISO-8859-1 for its encoding,
+	then the actual file name on disk would look like this:
+      </para>
+
+      <programlisting id="filename-iso8859-1">
+Character:  P  r  e  s  e  n  t  a  c  i  &oacute;  n  .  s  x  i
+Hex code:   50 72 65 73 65 6e 74 61 63 69 f3 6e 2e 73 78 69
+      </programlisting>
+
+      <para>
+	However, if the application use UTF-8, the actual file name on
+	disk would look like this:
+      </para>
+
+      <programlisting id="filename-utf-8">
+Character:  P  r  e  s  e  n  t  a  c  i  &oacute;     n  .  s  x  i
+Hex code:   50 72 65 73 65 6e 74 61 63 69 c3 b3 6e 2e 73 78 69
+      </programlisting>
+
+      <para>
+	Glib uses UTF-8 for its strings, and GUI toolkits like GTK+
+	that use Glib do the same thing.  If you get a file name from
+	the file system, for example, from
+	<function>readdir(3)</function> or from <link
+	linkend="g_dir_read_name"><function>g_dir_read_name()</function></link>,
+	and you wish to display the file name to the user, you
+	<emphasis>will</emphasis> need to convert it into UTF-8.  The
+	opposite case is when the user types the name of a file he
+	wishes to save:  the toolkit will give you that string in
+	UTF-8 encoding, and you will need to convert it to the
+	character set used for file names before you can create the
+	file with <function>open(2)</function> or
+	<function>fopen(3)</function>.
+      </para>
+
+      <para>
+	By default, Glib assumes that file names on disk are in UTF-8
+	encoding.  This is a valid assumption for file systems which
+	were created relatively recently:  most applications use UTF-8
+	encoding for their strings, and that is also what they use for
+	the file names they create.  However, older file systems may
+	still contain file names created in "older" encodings, such as
+	ISO-8859-1.  In this case, for compatibility reasons, you may
+	want to instruct Glib to use that particular encoding for file
+	names rather than UTF-8.  You can do this by specifying the
+	encoding for file names in the <link
+	linkend="G_FILENAME_ENCODING"><envar>G_FILENAME_ENCODING</envar></link>
+	environment variable.  For example, if your installation uses
+	ISO-8859-1 for file names, you can put this in your
+	<filename>~/.profile</filename>:
+      </para>
+
+      <programlisting>
+export G_FILENAME_ENCODING=ISO-8859-1
+      </programlisting>
+
+      <para>
+	Glib provides the functions <link
+	linkend="g_filename_to_utf8"><function>g_filename_to_utf8()</function></link>
+	and <link
+	linkend="g_filename_from_utf8"><function>g_filename_from_utf8()</function></link>
+	to perform the necessary conversions.  These functions convert
+	file names from the encoding specified in
+	<envar>G_FILENAME_ENCODING</envar> to UTF-8 and vice-versa.

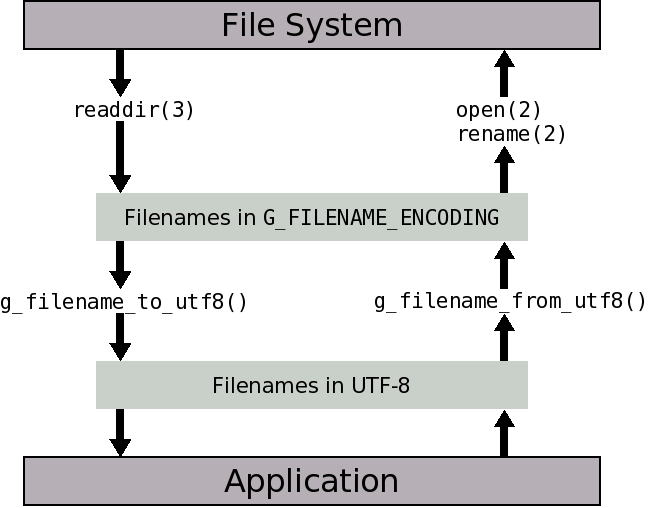

+	<xref linkend="file-name-encodings-diagram"/> illustrates how
+	these functions are used to convert between UTF-8 and the
+	encoding for file names in the file system.
+      </para>
+
+      <figure id="file-name-encodings-diagram">
+	<title>Conversion between File Name Encodings</title>
+	<graphic fileref="file-name-encodings.png" format="PNG"/>
+      </figure>
+
+      <refsect3 id="file-name-encodings-checklist">
+	<title>Checklist for Application Writers</title>
+
+	<para>
+	  This section is a practical summary of the detailed
+	  description above.  You can use this as a checklist of
+	  things to do to make sure your applications process file
+	  name encodings correctly.
+	</para>
+
+	<orderedlist>
+	  <listitem>
+	    <para>
+	      If you get a file name from the file system from a
+	      function such as <function>readdir(3)</function> or
+	      <function>gtk_file_chooser_get_filename()</function>,
+	      you do not need to do any conversion to pass that
+	      file name to functions like <function>open(2)</function>,
+	      <function>rename(2)</function>, or
+	      <function>fopen(3)</function> &mdash; those are "raw"
+	      file names which the file system understands.
+	    </para>
+	  </listitem>
+
+	  <listitem>
+	    <para>
+	      If you need to display a file name, convert it to UTF-8
+	      first by using <link
+	      linkend="g_filename_to_utf8"><function>g_filename_to_utf8()</function></link>.
+	      If conversion fails, display a string like
+	      "<literal>Unknown file name</literal>".  <emphasis>Do
+	      not</emphasis> convert this string back into the
+	      encoding used for file names if you wish to pass it to
+	      the file system; use the original file name instead.
+	      For example, the document window of a word processor
+	      could display "Unknown file name" in its title bar but
+	      still let the user save the file, as it would keep the
+	      raw file name internally.  This can happen if the user
+	      has not set the <envar>G_FILENAME_ENCODING</envar>
+	      environment variable even though he has files whose
+	      names are not encoded in UTF-8.
+	    </para>
+	  </listitem>
+
+	  <listitem>
+	    <para>
+	      If your user interface lets the user type a file name
+	      for saving or renaming, convert it to the encoding used
+	      for file names in the file system by using <link
+	      linkend="g_filename_from_utf8"><function>g_filename_from_utf8()</function></link>.
+	      Pass the converted file name to functions like
+	      <function>fopen(3)</function>.  If conversion fails, ask
+	      the user to enter a different file name.  This can
+	      happen if the user types Japanese characters when
+	      <envar>G_FILENAME_ENCODING</envar> is set to
+	      <literal>ISO-8859-1</literal>, for example.
+	    </para>
+	  </listitem>
+	</orderedlist>
+      </refsect3>
+    </refsect2>
+
 <!-- ##### SECTION See_Also ##### -->
 <para>

@@ -204,3 +351,11 @@ is not supported.
 @Returns:


+<!--
+Local variables:
+mode: sgml
+sgml-parent-document: ("../glib-docs.sgml" "book" "refentry")
+End:
+-->
+
+
